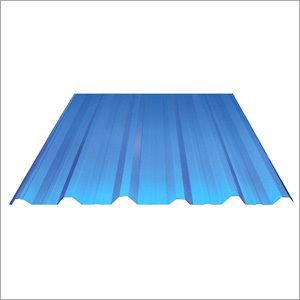

Trapezoidal Roofing Sheets

Trapezoidal Roofing Sheets
Trapezoidal Roofing Sheets
Product Code : 08
Product Description

Trapezoidal Roofing:

The Trapezoidal Roofing Sheets are made from Metallic G. I. Colour Coated Sheets with RMP, HDPE, SMP and PVDF2 Colour Coating, Galvalume Steel or Combination of Zinc and Aluminium coating is 150 GSM = AZ 150. The coating ratio is 55% Aluminium + 43.5% Zinc + 1.5% Silicon including both surfaces as per ASTM 1446, Grade E/ASTM-A-792 or from Galvalume Colour Coated material, depending upon the customer's choice. Basic material used is C. R. 240 MPA Steel, the Zinc coating (including both surface) is 120 GSM, 180 GSM, 275 GSM. 18 to 20 microne

Colours available are appliance Off White, Blue, Green and Brick Red, Terra cotta, Gray, etc.

We have in house facilities to manufacture Roofing Accessories such as Ridges, Eaves, Apron, Gutter, Capping, Flashing and North Light Curves Trap Sheets etc. in suitable required size and shape.

Salient features:

  • It has six corrugations and distance between two corrugations is 197 mm. & height is 32mm.
  • Comes with anticapillary groove, which efficiently drains water out of the shed and with return lag
  • Has 6 corrugations (troughed) in between. We also provide small stiffening ribs on lower tension face to impart rigidity for moment resistance under reversing stresses.
  • One of the strong and best profile designs which is very cost effective, considering the laid covered area i.e.985mm.
  • Comes with male, female end corrugation, for perfect matching
